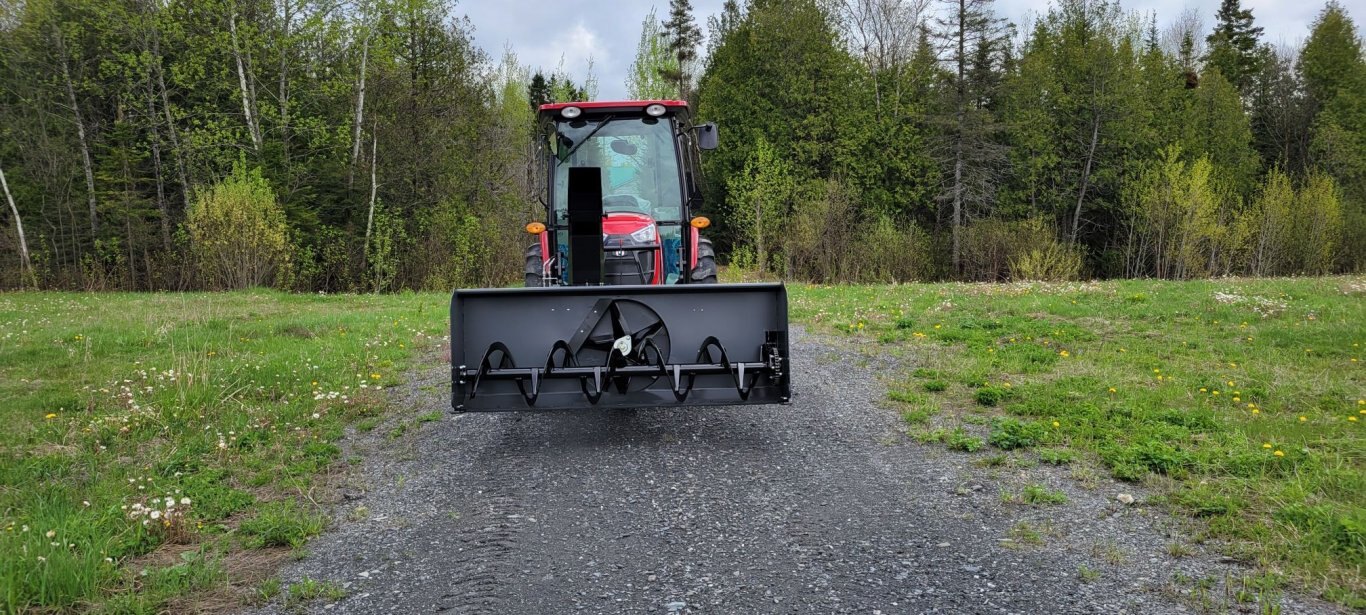

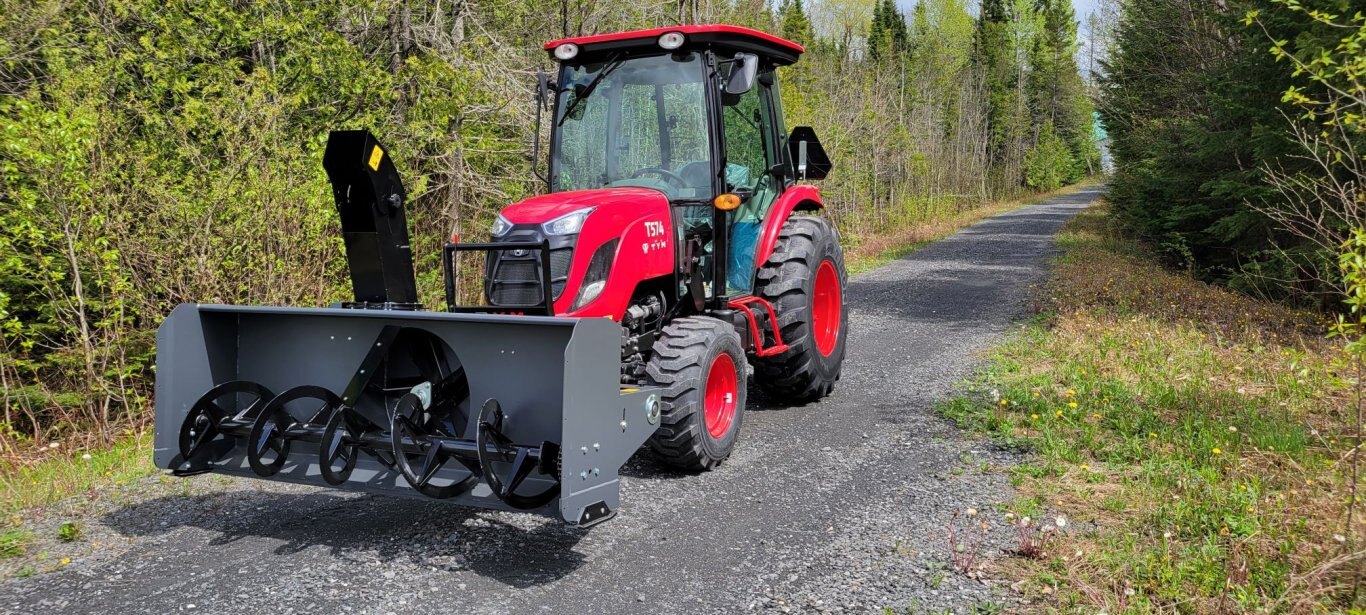

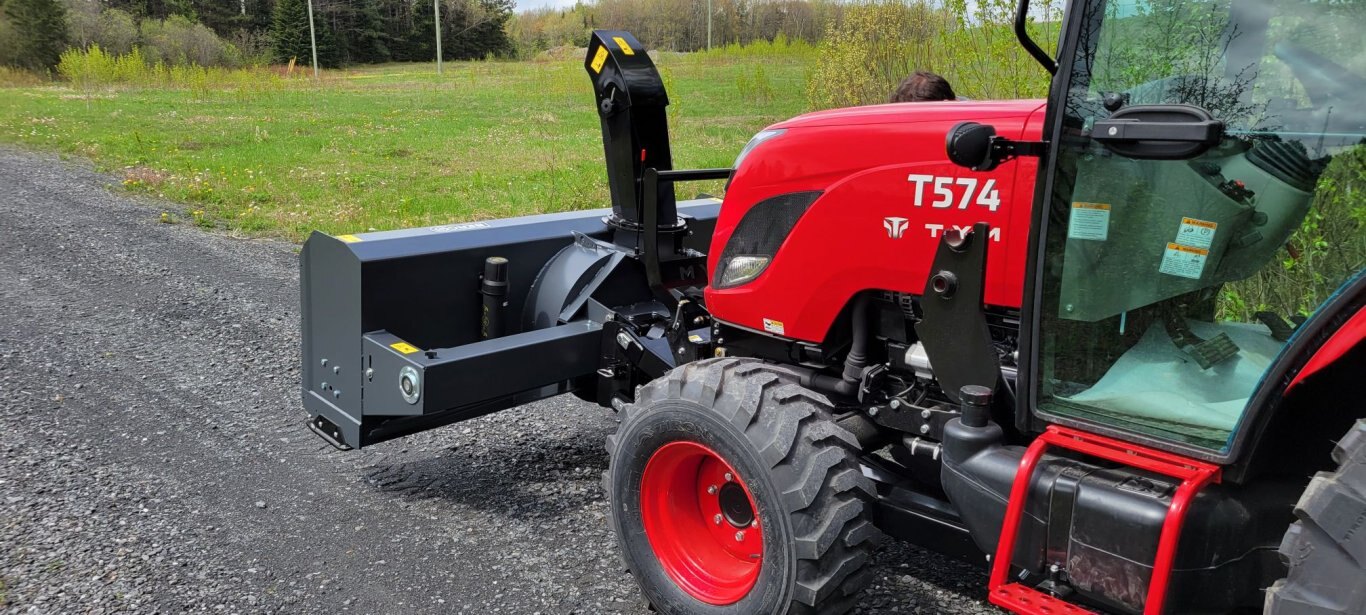

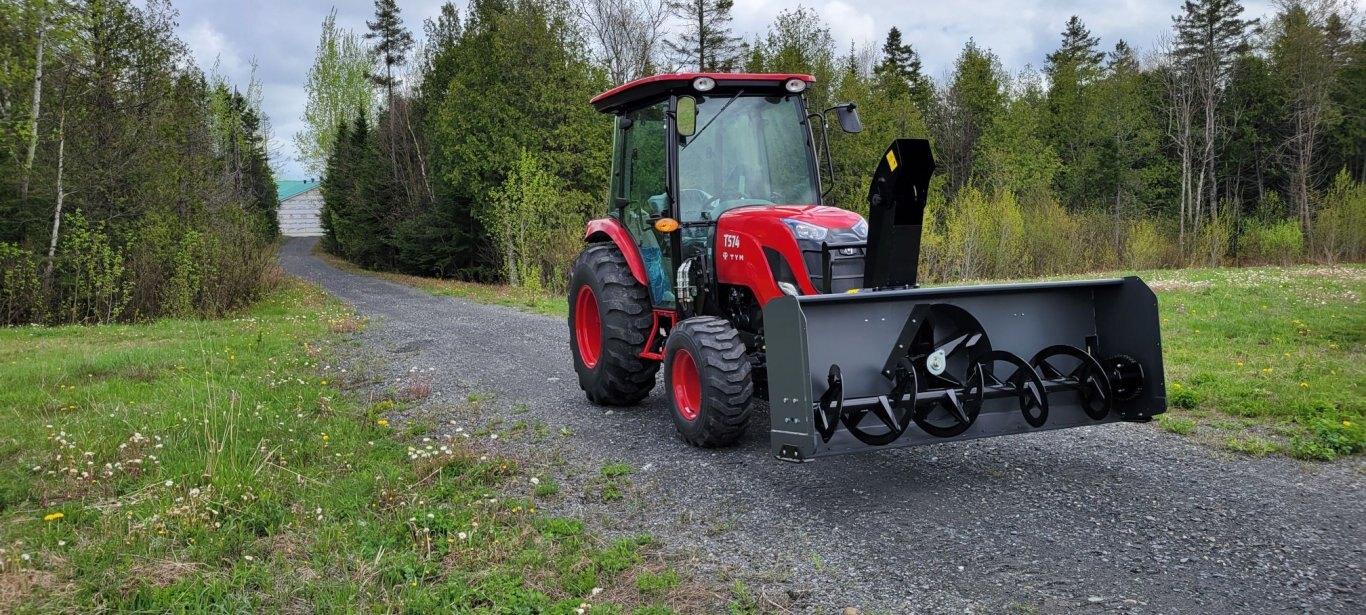

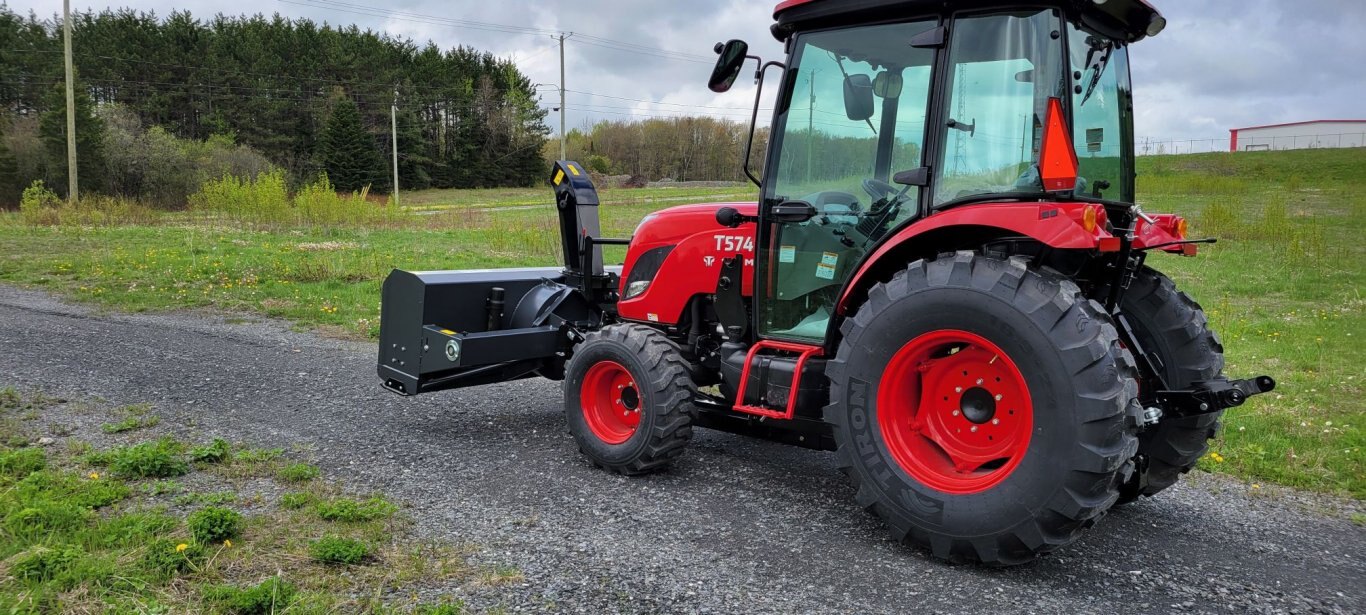

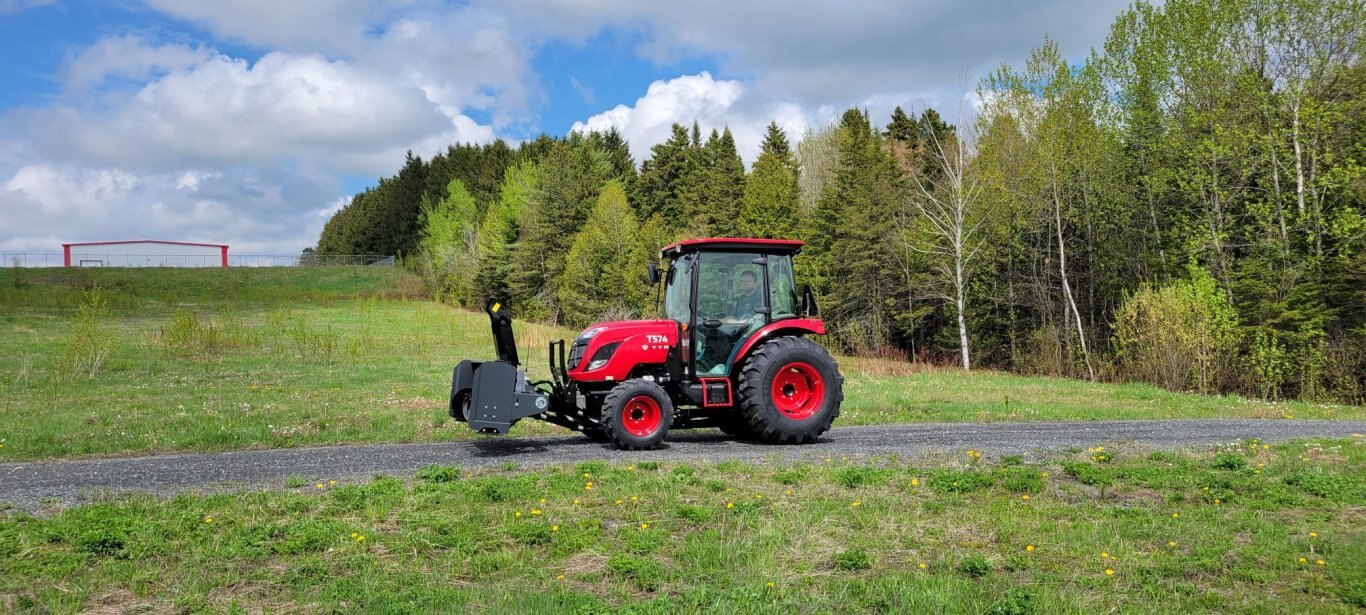

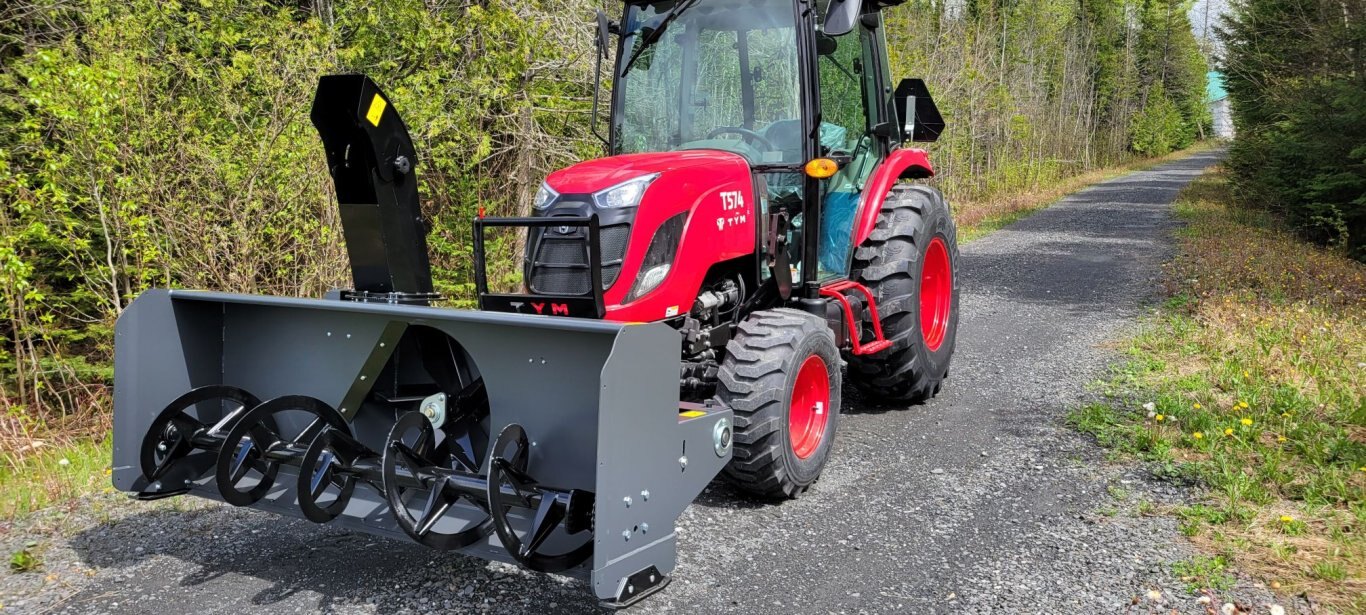

This winter, BE READY! Gear up your compact tractor with a Berco Front Mount Snowblower and take a bite out of winter. Go through any type of snow and any amount of snow. Berco products make your life easier. Comes standard with hydraulic chute (comes with manual deflector but electric offered as an option). |
|
Long life span and low maintenance
Hydraulic lift (uses the PTO of the tractor)

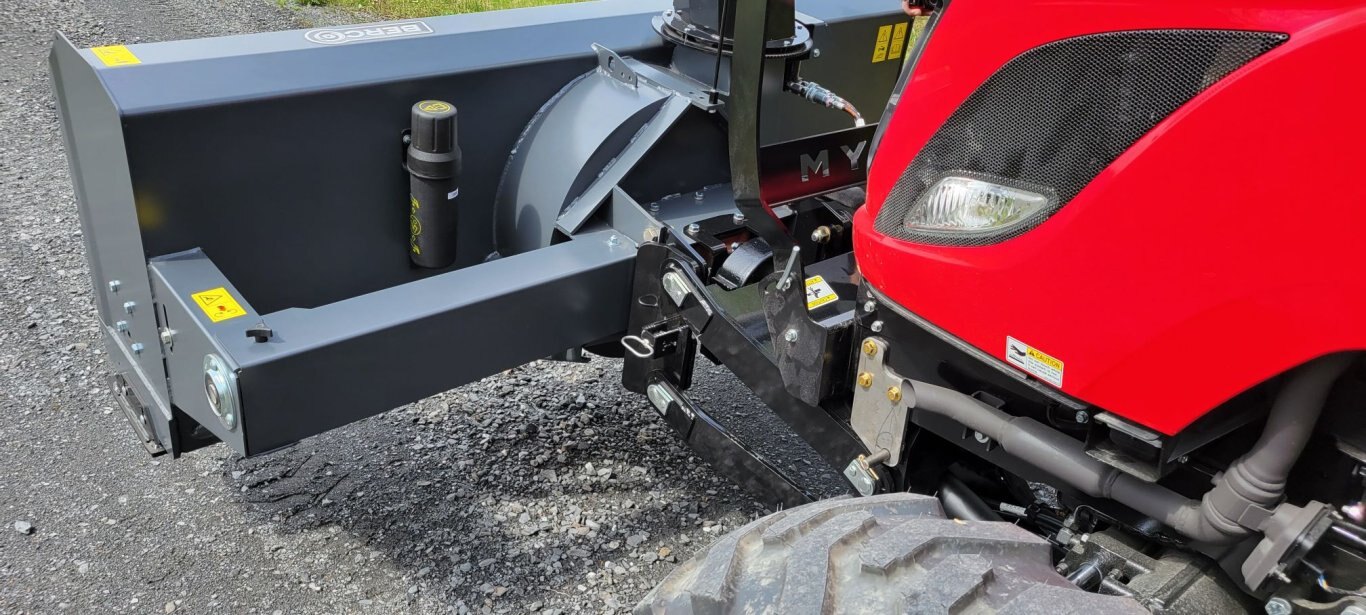

Easy to install
|

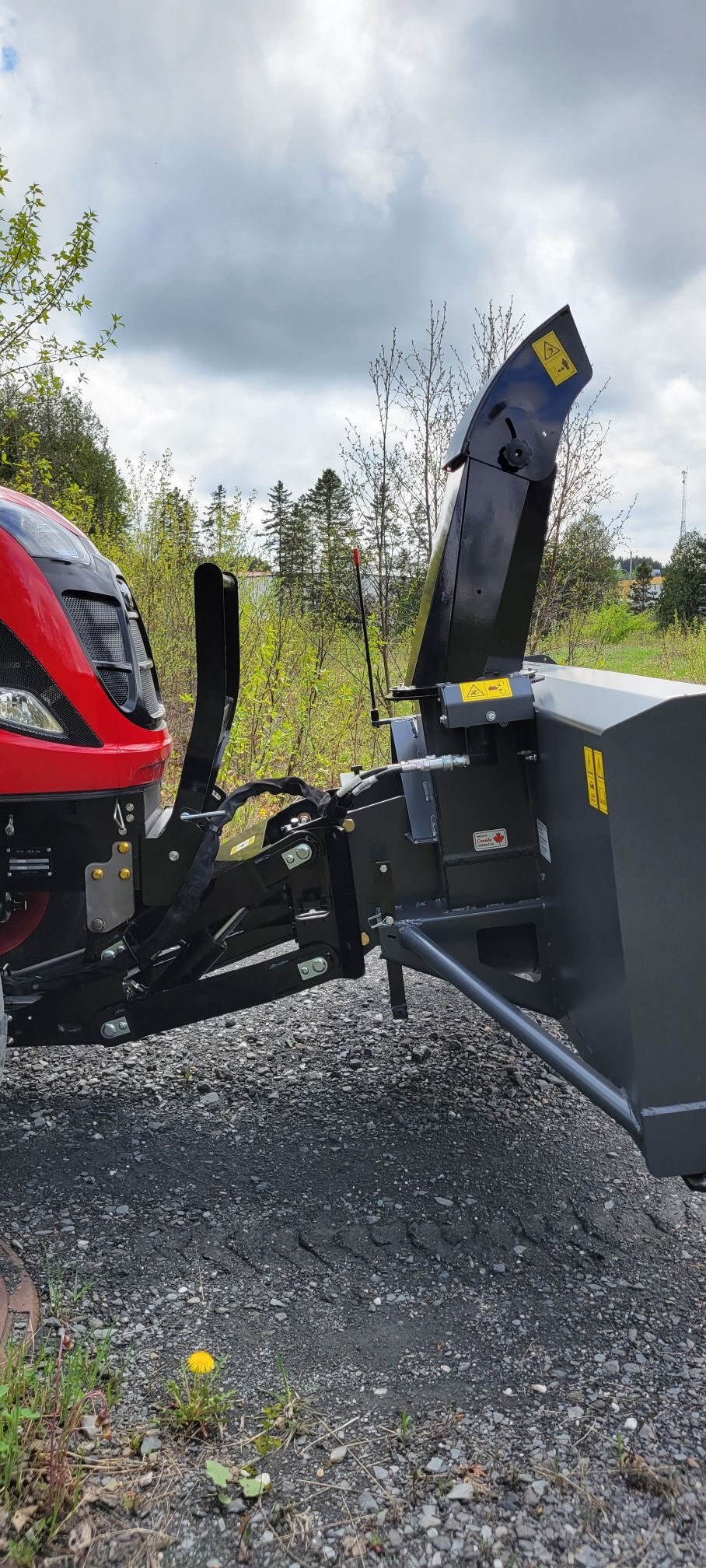

1. Chute rotation: hydraulic chute rotation mounted on anti-friction ring for easy rotation of 237 degrees.
2. Deflector: Adjustable manually with knobs allowing to direct snow accurately. Optional electric kit available 700666-2.
3. Housing: Made of 12 gauge steel. Side panels of 3/16” assuring durability.
4. Chain drive: easy access for lubrication.
5. Bearings: all rotating parts are installed on bearings or bushings to facilitate replacement when necessary.
6. Auger: 16”, diameter with stabilizer.
7. Cutting edge: 3/8” thick x 3” wide, reversible and replaceable.
8. Fan: 5 blades, 24” with shear bolt directly on fan for easy replacement.
9. Skid shoes: Adjustable & replaceable.
10. Parking stand for easy storage and to facilitate installation.
11. Gear box: heavy duty cast iron.
12. Marker: to assist in installation.
13. Canister: for owner’s manual and tools.
14. Reinforcement
